Square Steel Profile Soffit Panel Rain Pipe Gutter Downspout Machine

Brand Name : CHBEST

Model Number : XY94-130

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Price : $15200-$28500/set

Supply Ability : 10 sets/month

Delivery Time : 30days

Packaging Details : plastic film for naked machine

Product name : Square Steel Profile Soffit Panel DownSpout Water Tube Roll Forming Machine Rain Pipe

Color : Blue or as your request

Machine power : 5.5kw+3kw

Control system : PLC

Warranty : 2 years

Life time : more than 10 years

Contact Now

Square Steel Profile Soffit Panel DownSpout Water Tube Roll Forming Machine Rain Pipe

Components of Machine
Decoiler (manual decoiler and hydraulic decoiler for option) 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table (auto. Stacker for option) 1set

Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

Type Manual Auto(option)
Length 2 pieces 6m or 12m

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming

Forming stations 16-22 stations(according to the profiles)

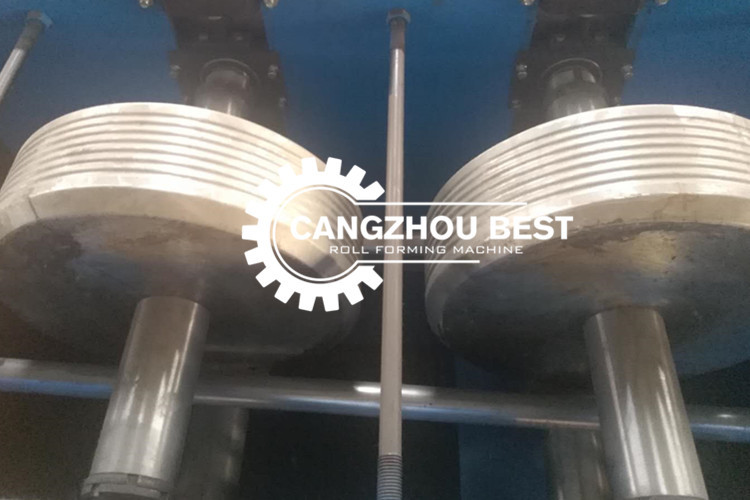

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 5.5kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type

Mould type
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Hydraulic pump

Main Item Parameter detail
Motor

3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

Square Steel Profile Soffit Panel Rain Pipe Gutter Downspout Machine

Square Steel Profile Soffit Panel Rain Pipe Gutter Downspout MachineSquare Steel Profile Soffit Panel Rain Pipe Gutter Downspout Machine
